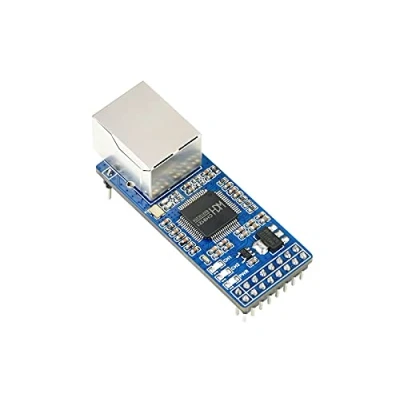

IBest 2 CH UART To Ethernet Converter,UART TTL and RJ45 Bi Directional Transparent Transmission Module,10/100M,Auto MDI/MDIX,Full Duplex/Half Duplex Auto Negotiation Interface

Embedded Ethernet MAC and PHY layers.Bi-direction transparent data transmission between UART and Ethernet.10/100M, full-duplex/half-duplex auto-negotiation Ethernet interface, 802.3-compliant Auto-MDI/MDIX, detect and switch cable type automatically.Supports DHCP auto-obtained IP and DNS domain access. Network parameter configuration like chip operating mode, port, IP, via host computer software or UART command.Four operating modes: TCP CLIENT, TCP SERVER, UDP CLIENT, UDP SERVER 2-CH UART concurrent operation, standalone transparent transmission for each channel.Full-duplex or half-duplex UART communication, supports RS485 RX/TX auto switch Supports virtual serial port software (provided).KEEPALIVE mechanism support.Comes with development resources and manual (examples for Pico/Raspberry Pi/Arduino/STM32)
