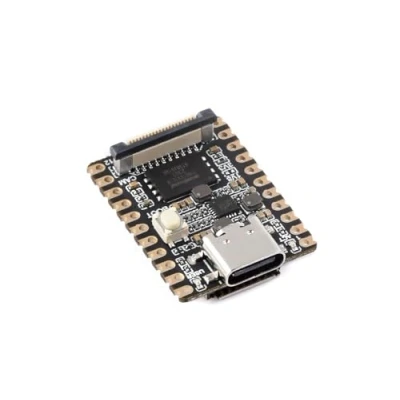

Luckfox Pico Mini Linux Micro Placa de Desarrollo Basada en Chip RV1103, Integra Procesadores Arm Cortex A7/RISC V MCU/NPU/ISP, 64MB DDR2 Memoria, 128MB Flash, Soporta MIPI CSI, GPIO, USB etc.

Luckfox Pico Mini Linux Micro developmentboard, based on Rockchip RV1103 chip, integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP processors, 64MB DDR2 memory, 128MB SPI NAND flash, supports a variety of interfaces including MIPI CSI, GPIO, UART, SPI, I2C, USB, etc. Micro RV1103 Linux development board integrates single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU, built-in RISC-V MCU supports low power consumption and fast start-up, supports 250ms fast picture capture and loading AI model library at the same time to realize face recognition "in one second" Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4 Built-in self-developed third-generation ISP3.2, supports 4-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc. Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage space, built-in 16-bit DRAM DDR2, which is capable of sustaining demanding memory bandwidths, integrated with built-in POR, audio codec and MAC PHY
