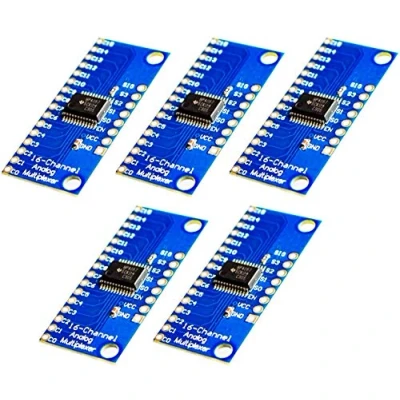

TECNOIOT 5pcs CD74HC4067 16 Channel Analog Digital Multiplexer Breakout Board Module

【CD74HC4067】 CD74HC4067 16-Channel Analog Digital Multiplexer Breakout Board Module 【Design compact】 -This is a breakout board for the very handy 16-Channel Analog / Digital Multiplexer / Demultiplexer CD74HC4067. -This chip is like a rotary switch - it internally routes the common pin (COM in the schematic, SIG on the board) to one of 16 channel pins (CHANxx). 【High performance】 -To control it, connect 4 digital outputs to the chip's address select pins (S0-S3), and send it to the binary address of the channel you want (see the datasheet for details). -This allows you to connect up to 16 sensors to your system using only 5 pins! 【COMPATABLITY】 -By using multiple boards, you can create similar arrangements for I2C, SPI, etc. -The internal switches are bidirectional, support voltages between ground and VCC, have low on resistance and low off leakage, and to prevent crosstalk, perform break-before-make-switching. -The board also breaks out the chip's enable pin, which when driven high, will completely disconnect the common pin (all switches off). 【Entrega rápida】Envío desde España con llegada rápida a toda la UE
