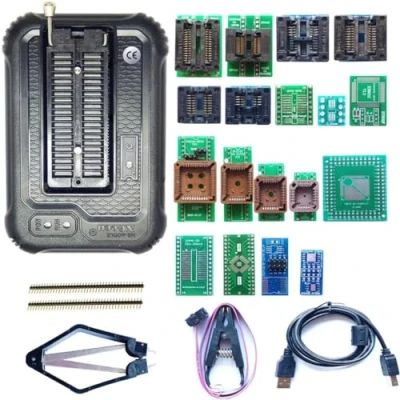

Xgecu TL866II Plus Upgraded T48 Programmer 18 Adapter Socket Clip IC Chip Nand Flash Mcu Bios AVR Eprom

T48 (Tl866-3G) programmer is the improvement of tl866ii plus programmer,with 40-pin industrial high-quality zif socket (pluggable/replaceable).Based on 32-bit mcu with 120mhz and 4-layer pcb design. Support operating systems: windows xp,2003,2008,vista win7 win8 win10 win11,support multilanguage, self-test each pin of vpp/vcc/gnd/io.Can do small batch production for high capacity chips. Support high-capacity nand emmc up to 256gb and programming speed is much higher.Suppport high-voltage chips,such as 27cxxx series,vpp maximum up to 25v,that is what tl866ii cannot achieve. Before buying, make sure the models you want to program are in the support list. The new software will be improved future, so please contact us to resolve at first if any questions and suggestions. Programming speed much faster. For example,w25q80, 3.5s+0.3s(program+verify) (30mhz); For spi nor flash 25q128, 30s+5.4s(p+v) (30mhz); For p_nand 29f1g08ab, 27s +17s(p+v); For p_nor flash en29lv320
